Filter Adjustment for Low RSG Pro (down to 8’)

Question:  How low can the RSG Pro be mounted?
Answer:

The RSG Pro is designed to be mounted between 9’ 0” and 10’ 6” above the hitting surface as measured from the turf to the ceiling where the upper bracket of the RSG Pro will be attached with screws.

If you wish to consider mounting below 9’ 0”, please send an email to support@rsgolf.com for a consultation.

The primary considerations are the clearance to the ceiling when swinging a long club, such as a driver.  The secondary consideration is the calibration of the cameras and adjustments to the configuration to account for the cameras being closer to the golf ball, and therefore the

An example:

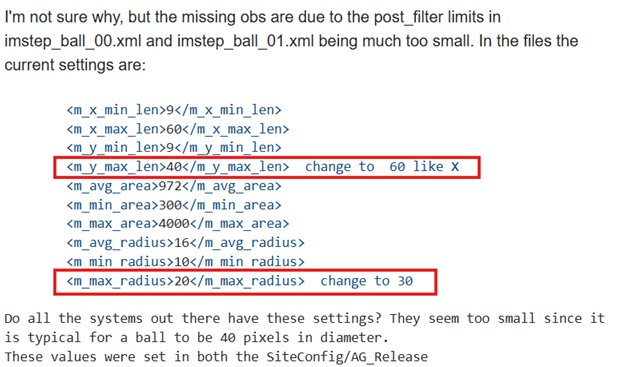

Filter settings for blob promotion to ball.  For RSG Pro mounted low, close to 8’.

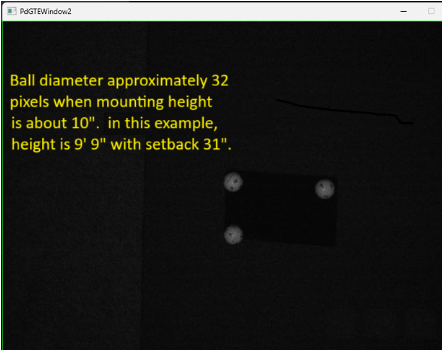

Typically, for RSG Pro, the ball diameter is around 32 pixels, as shown here:

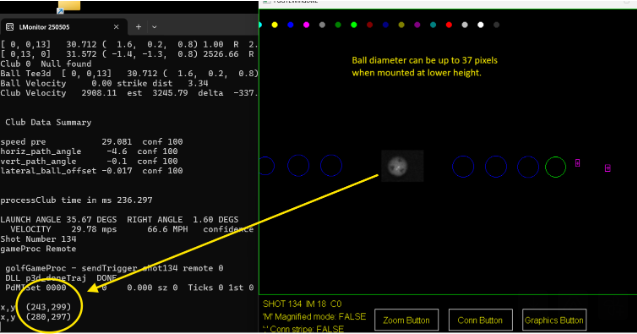

Here’s an example of a lower mounting height with a ball diameter increase to approximately 37 pixels.
